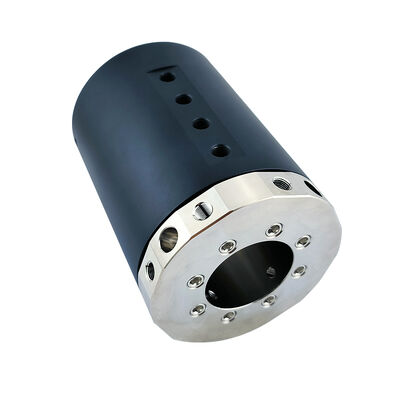

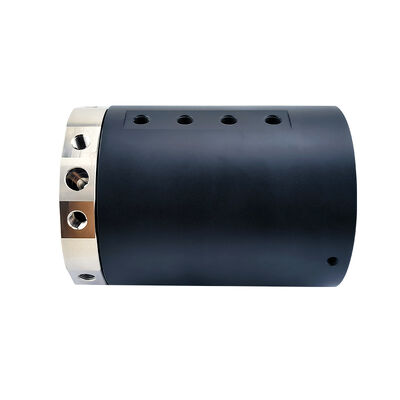

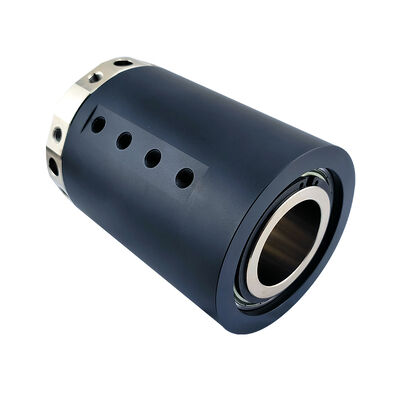

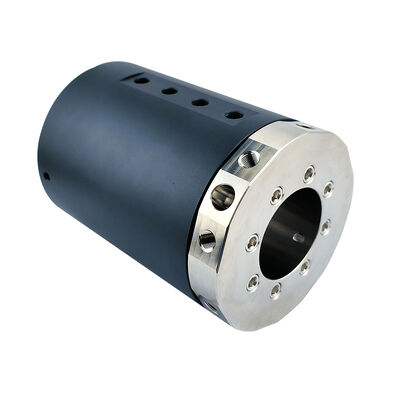

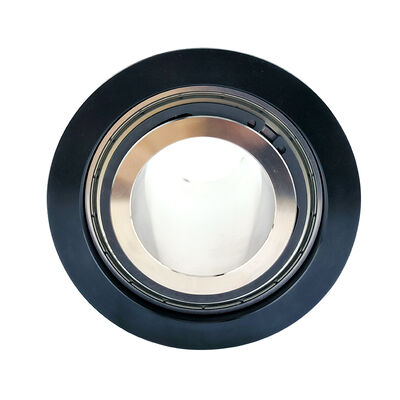

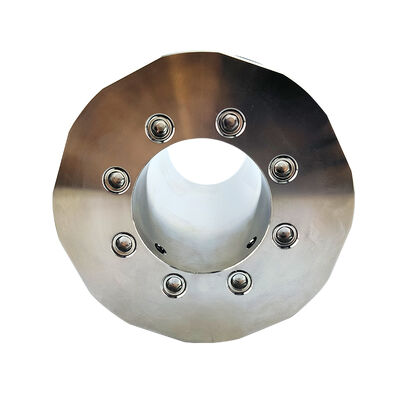

8-channel Large-diameter Gas Rotary Union with 50mm Inner Diameter and 109mm Outer Diameter for 20 RPM Applications

8-channel Large-diameter Gas Rotary Union with 50mm Inner Diameter and 109mm Outer Diameter for 20 RPM Applications
8-channel Large-diameter Gas Rotary Union with 50mm Inner Diameter and 109mm Outer Diameter for 20 RPM Applications
8-channel Large-diameter Gas Rotary Union with 50mm Inner Diameter and 109mm Outer Diameter for 20 RPM Applications 8-channel Large-diameter Gas Rotary Union with 50mm Inner Diameter and 109mm Outer Diameter for 20 RPM Applications 8-channel Large-diameter Gas Rotary Union with 50mm Inner Diameter and 109mm Outer Diameter for 20 RPM Applications 8-channel Large-diameter Gas Rotary Union with 50mm Inner Diameter and 109mm Outer Diameter for 20 RPM Applications 8-channel Large-diameter Gas Rotary Union with 50mm Inner Diameter and 109mm Outer Diameter for 20 RPM Applications 8-channel Large-diameter Gas Rotary Union with 50mm Inner Diameter and 109mm Outer Diameter for 20 RPM Applications 8-channel Large-diameter Gas Rotary Union with 50mm Inner Diameter and 109mm Outer Diameter for 20 RPM Applications

Large Image :  8-channel Large-diameter Gas Rotary Union with 50mm Inner Diameter and 109mm Outer Diameter for 20 RPM Applications

Product Details:
Place of Origin: china
Brand Name: GuRen
Certification: ISO9001.CE.RoHS
Model Number: Q8P01-50109-GRA0716
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: ＄19-199
Packaging Details: Standard/On Request
Delivery Time: 3 weeks ARO
Payment Terms: L/C,D/P,T/T
Supply Ability: 1K units/week
Contact Now Chat Now

8-channel Large-diameter Gas Rotary Union with 50mm Inner Diameter and 109mm Outer Diameter for 20 RPM Applications

Description
Circuit Number: 8 Circuits Inner Diameter: 50mm
Outer Diameter: 109mm High: 152mm
Sealing Type: O-Ring Service Life: 20 Million Rotations
Highlight:

50mm inner diameter Gas Rotary Union

,

109mm outer diameter Air Slip Ring

,

20 RPM Pneumatic Rotary Joint

8-Channel Large-Diameter Air Slip Ring
Center Hole Design, Outer Diameter of 109mm
Product Overview
This 8-channel large-bore air slip ring features an aluminum alloy housing with a large inner diameter of 50mm and an outer diameter of 109mm. It integrates 8 independent air channels, compatible with G1/8" interface air hoses. The product is designed for a rotational speed of 20 RPM, has an IP51 protection rating, and can withstand a maximum working air pressure of 0.8 MPa.
Key Features
  • 8 Independent Air Circuits: Provides 8 independent G1/8" interface air circuits, supporting complex multi-actuator synchronous pneumatic control.
  • 50mm Extra-Large Inner Diameter: A spacious central through-hole provides ample space for power cables, signal cables, hydraulic lines, and other pipelines, simplifying the equipment structure.
  • 0.8MPa High Pressure Withstandable: Can withstand working air pressures up to 0.8MPa, meeting the high-pressure requirements of most industrial pneumatic systems and ensuring stable air supply.
  • Robust Industrial Design: The aluminum alloy housing ensures robust construction and excellent heat dissipation; the IP51 protection rating effectively prevents dust and vertical water dripping.
Technical Parameters
Parameter Value
Transmission medium air
Working life 20 million revolutions (reference value)
Maximum speed 20 RPM
Pressure range 0.8MPa
Operating temperature -30℃ to +80℃
Operating humidity 0-85% RH
Protection level IP51
Shell material Aluminum Alloy
Rotational torque 0.5N.m (reference value, torque increases with channel count)
Product Dimensions
8-channel Large-diameter Gas Rotary Union with 50mm Inner Diameter and 109mm Outer Diameter for 20 RPM Applications 0
Application Scenarios
  • Multi-station rotary fixtures and tables: Provide independent and synchronized pneumatic clamping and releasing power for multiple fixtures.
  • Automated assembly and testing equipment: Drive multiple pneumatic actuators on a rotating platform.
  • Packaging and filling machinery: Used for blowing, cleaning, or driving rotating parts.
  • Any multi-path pneumatic rotary application requiring a central guide line.
Frequently Asked Questions
Q1: Can the 8 gas circuits operate simultaneously at different pressures?
A: Yes. Each gas circuit is independent. You can connect different gas sources or use pressure regulating valves to set different working pressures for each circuit to achieve pressure control.
Q2: What types of pipelines can be accommodated with a 50mm inner diameter?
A: The 50mm inner diameter provides ample space, allowing for the simultaneous passage of multiple equipment cables, Ethernet cables, servo motor encoder cables, fiber optic cables, and even small-diameter hydraulic pipes, making it ideal for integrated designs.
Q3: Does the product support higher speeds?
A: This product is designed for a speed optimized to 20 RPM to ensure optimal seal life and stability when using high-pressure gas. For higher speeds, an evaluation based on specific operating conditions is required. We recommend contacting our technical support for a customized solution.
