3-Channel High-Temperature Silicone Oil Liquid Slip Ring with 50mm Inner Diameter for Reliable Fluid Transmission

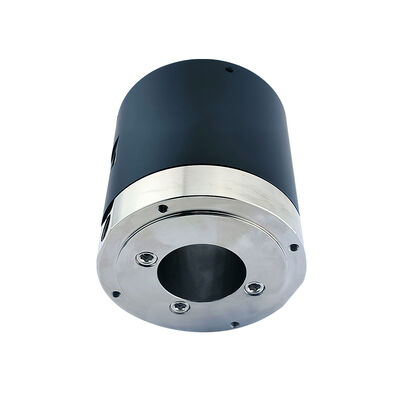

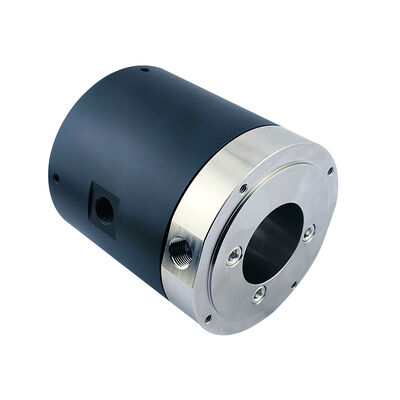

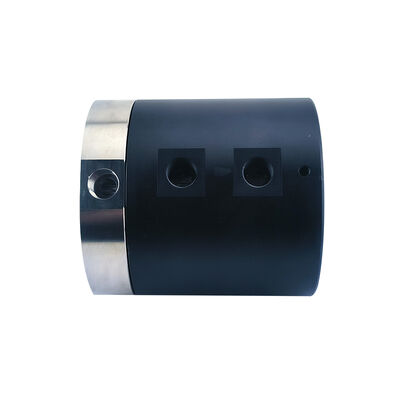

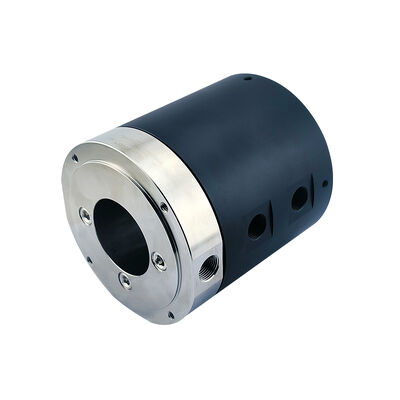

Large Image : 3-Channel High-Temperature Silicone Oil Liquid Slip Ring with 50mm Inner Diameter for Reliable Fluid Transmission

Product Details:

Place of Origin:	china
Brand Name:	GuRen
Certification:	ISO9001.CE.RoHS
Model Number:	Q3P03-50119-A6367

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	＄19-199
Packaging Details:	Standard/On Request
Delivery Time:	3 weeks ARO
Payment Terms:	L/C,D/P,T/T
Supply Ability:	1K units/week

Contact Now Chat Now

3-Channel High-Temperature Silicone Oil Liquid Slip Ring with 50mm Inner Diameter for Reliable Fluid Transmission

Description

Circuit Number:	3-channel	Inner Diameter:	50mm
Outer Diameter:	119mm	High:	128mm
Operating Temperature:	-30℃ +270℃	Service Life:	20 Million Rotations
Highlight:	3-Channel Liquid Slip Ring , High-Temperature Silicone Oil Fluid Rotary Union , 50mm Inner Diameter High-Temperature Rotary Joint

3-Channel High-Temperature Liquid Slip Ring

This 3-channel high-temperature liquid slip ring features an aluminum alloy housing and a large 50mm inner diameter through-hole, supporting a standard G3/8" interface. Its core performance lies in its ability to reliably transmit high-temperature thermal fluids such as silicone oil at temperatures up to 180℃, with an operating pressure of 1.0 MPa and a rotational speed of 200 RPM.

Key Features

180℃ High-Temperature Compatibility: Sealing materials are specifically optimized for high-temperature media such as silicone oil and thermal oil, ensuring sealing stability and material durability under long-term high-temperature conditions.
3-Channel Independent Circulation: Supports simultaneous transmission through three independent circuits, meeting complex multi-channel heating, cooling, or temperature control requirements.
50mm Large Inner Bore Design: Provides ample central space for wiring, allowing for the centralized passage of power lines, signal lines, or air pipes.
High-Pressure, High-Speed Operation: Excellent sealing performance at 1.0 MPa working pressure and 200 RPM ensures leak-free transmission of high-temperature, high-pressure fluids during dynamic rotation.

Technical Parameters

Parameter	Value
Transmission medium	High-temperature silicone oil
Working life	20 million revolutions (reference value)
Maximum speed	200 RPM
Pressure range	1 MPa
Operating temperature	-30℃ to +270℃
Operating humidity	0-85% RH
Protection level	IP51
Shell material	Aluminum Alloy
Rotational torque	0.5 N.m (reference value, torque increases with channel count)

Product Dimensions

Application Scenarios

High-temperature rotating equipment: Hot oil temperature control for rotating molds in die-casting and injection molding machines
Chemical and textile machinery: Rotating heating and cooling for reactors and roller drying equipment
New energy equipment: High and low-temperature cyclic testing of rotating parts in motor and battery pack test benches
Constant temperature experimental equipment: Fluid temperature control circuit connection for rotating environmental chambers and material testing instruments

Frequently Asked Questions

Q: Besides silicone oil, can other high-temperature media be used?

A: This product is primarily optimized for high-temperature silicone oil. For other high-temperature media (such as certain types of heat transfer oil or high-temperature water), compatibility assessment is required based on their specific chemical properties, temperature, and pressure. Please provide the media parameters so that we can confirm compatibility.

Q: How is the product's service life guaranteed during continuous operation at 180℃?

A: We use special high-temperature resistant and anti-aging sealing materials and bearings, and conduct rigorous high-temperature endurance tests before shipment. Under standard operating pressure and speed, the product's design life meets the long-term requirements of most industrial applications.

Q: Can the three channels withstand different pressures or temperatures?

A: Yes. The three channels are structurally independent and can simultaneously transmit media at different pressures or temperatures. However, the system's maximum operating pressure and temperature must not exceed the product's rated maximum values (1.0 MPa, 180℃).
