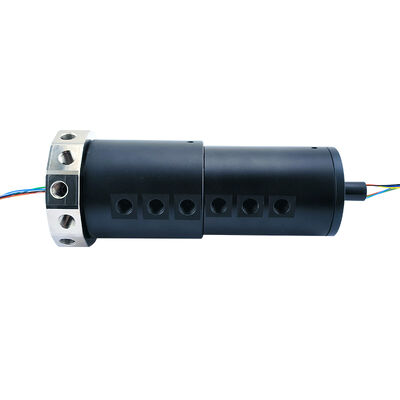

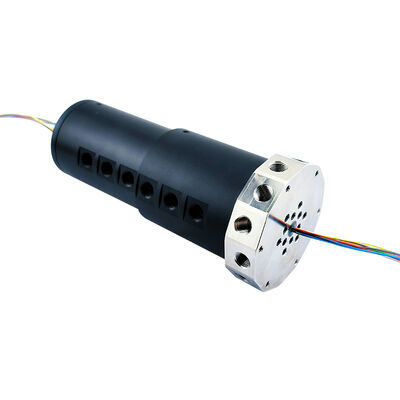

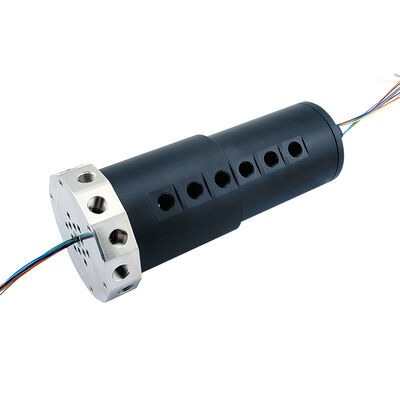

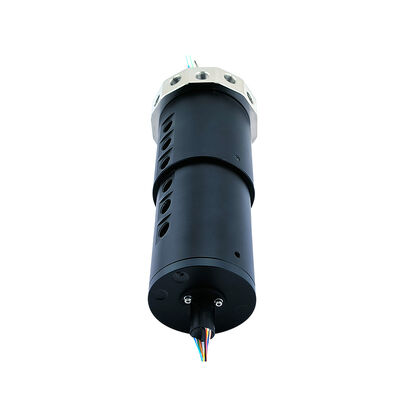

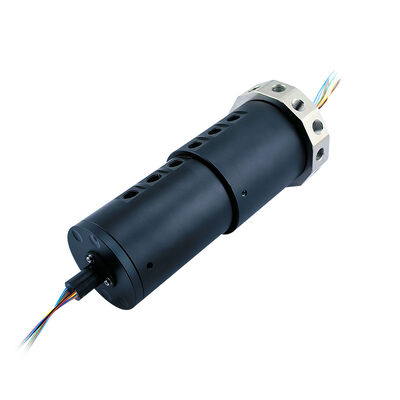

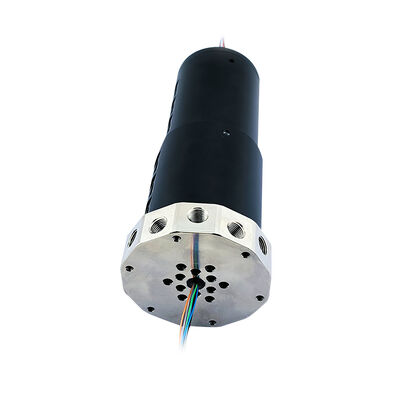

12-Channel Pneumatic and 12-Channel Electrical Integrated Slip Ring with 200 RPM for Automation Equipment

12-Channel Pneumatic and 12-Channel Electrical Integrated Slip Ring with 200 RPM for Automation Equipment
12-Channel Pneumatic and 12-Channel Electrical Integrated Slip Ring with 200 RPM for Automation Equipment
12-Channel Pneumatic and 12-Channel Electrical Integrated Slip Ring with 200 RPM for Automation Equipment 12-Channel Pneumatic and 12-Channel Electrical Integrated Slip Ring with 200 RPM for Automation Equipment 12-Channel Pneumatic and 12-Channel Electrical Integrated Slip Ring with 200 RPM for Automation Equipment 12-Channel Pneumatic and 12-Channel Electrical Integrated Slip Ring with 200 RPM for Automation Equipment 12-Channel Pneumatic and 12-Channel Electrical Integrated Slip Ring with 200 RPM for Automation Equipment 12-Channel Pneumatic and 12-Channel Electrical Integrated Slip Ring with 200 RPM for Automation Equipment 12-Channel Pneumatic and 12-Channel Electrical Integrated Slip Ring with 200 RPM for Automation Equipment 12-Channel Pneumatic and 12-Channel Electrical Integrated Slip Ring with 200 RPM for Automation Equipment

Large Image :  12-Channel Pneumatic and 12-Channel Electrical Integrated Slip Ring with 200 RPM for Automation Equipment

Product Details:
Place of Origin: china
Brand Name: GuRen
Certification: ISO9001.CE.RoHS
Model Number: Q12P01-12PS
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: ＄19-199
Packaging Details: Standard/On Request
Delivery Time: 3 weeks ARO
Payment Terms: L/C,D/P,T/T
Supply Ability: 1K units/week
Contact Now Chat Now

12-Channel Pneumatic and 12-Channel Electrical Integrated Slip Ring with 200 RPM for Automation Equipment

Description
Air Channel: 12 Channel Interface Specifications: G1/8"
Applicable Trachea: 6-8mm Protection Level: IP51
Number Of Circuits: 12-way Outer Diameter: 62mm
Highlight:

12-channel pneumatic Integrated Slip Ring

,

12-channel electrical Rotary Joint

,

200 RPM Pneumatic Slip Ring

12-Channel Pneumatic and Electrical Integrated Slip Ring
This integrated slip ring combines 12 pneumatic channels and 12 electrical channels in a single compact unit. The aluminum alloy casing features black anodized surface treatment, with internal wiring using AWG28# Teflon wire. Pneumatic channels withstand up to 0.8 MPa working pressure, electrical circuits support 220V working voltage, and operating speed reaches 200 RPM. This provides a highly integrated and reliable solution for small to medium-sized automation equipment requiring simultaneous transmission of multiple pneumatic and electrical signals.
Key Features
  • High-Density Integration: 24 independent channels (12 pneumatic + 12 electrical) in a single compact unit, simplifying rotary interfaces and saving installation space
  • Reliable Performance: Pneumatic channels support 0.8 MPa working pressure; electrical circuits use AWG28# Teflon wires for stable signal transmission; 200 RPM rotation speed suitable for industrial applications
  • Robust Construction: Black anodized aluminum alloy casing enhances corrosion resistance, wear resistance, and provides professional industrial appearance
  • Compact Solution: Replaces traditional separate pneumatic and electrical slip rings, reducing connection points and failure risks while improving system reliability
Technical Parameters
Electrical Parameters Gas Parameters
Dielectric strength: 200VCA@50Hz,60s Number of trachea: 12 in 12 out
Insulation resistance: ≥500MΩ/200VDC Pressure: -99KPa-0.8MPa or vacuum
Dynamic resistance change value: ＜10mΩ Rotational torque: <0.3N.m
Rated voltage: 0～220VDC/VAC Rotation speed: 200rpm
Wire Specifications: Teflon wire (current-dependent) Shell material: Aluminum Alloy
Wire length: Default 300mm (Customizable) Temperature: -30℃～+80℃
Contact material: Precious metal contacts Operating humidity: 0～85%RH
Protection level: IP51
Technical Drawings
12-Channel Pneumatic and 12-Channel Electrical Integrated Slip Ring with 200 RPM for Automation Equipment 0
Application Scenarios
  • Multi-station automated equipment: Multi-channel pneumatic grippers and sensors on rotary assembly, testing, and dispensing platforms requiring power/signal transmission
  • Small robot end-of-arm tooling: Compact EOAT integrating multiple pneumatic actions and electrical signal feedback
  • Packaging and sorting machinery: Synchronous control of multiple pneumatic valves and position sensors on rotary dispensers
  • Experimental and testing devices: Rotary test benches requiring simultaneous provision of multiple pneumatic and electrical signal excitations
Frequently Asked Questions
What is the rated current of the 12-channel circuit?
This product uses AWG28# wires and is primarily designed for signal transmission and low-power supply. The current carrying capacity per channel is typically 1-2A. If you need to transmit higher currents, please choose our high-current models or request a custom design.
How are the pneumatic and electrical interfaces distributed?
The product features an integrated design, and all pneumatic and electrical interfaces are typically optimized according to customer requirements for convenient wiring and tubing connections. A detailed interface layout diagram can be obtained during the selection process.
What is the main function of the black anodizing treatment?
Anodizing treatment forms a hard, dense oxide film on the aluminum alloy surface. Its main functions are: improving corrosion resistance, increasing surface hardness and wear resistance, providing an insulating layer, and achieving a consistent black appearance.

Tag:

aluminum slip ring,

electronic slip ring,

integrated slip ring
