Product Details:
Place of Origin: china
Brand Name: GuRen
Certification: ISO9001.CE.RoHS
Model Number: Q6P08-20P-A6435
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: ＄19-199
Packaging Details: Standard/On Request
Delivery Time: 3 weeks ARO
Payment Terms: L/C,D/P,T/T
Supply Ability: 1K units/week
Contact Now Chat Now

Integrated Slip Ring with 14MPa Ultra-High Pressure Oil Circuit, 16-Channel High-Current Power Matrix, and IP51 Protection for Heavy-Duty Applications

Description
Air Channel: 2 Gas Lines, 4 Oil Lines Applicable Trachea: G 1/4" 、 G 1"
Protection Level: IP51 Number Of Circuits: 20-way
Outer Diameter: 148mm Length: 402.2mm
Highlight:

14MPa Ultra-High Pressure Oil Circuit Pneumatic Slip Ring

,

16-Channel High-Current Power Matrix Integrated Slip Ring

,

IP51 Protection Level Rotary Joint

Integrated Slip Ring for Gas, Oil, and Electricity
Multi-medium integrated slip ring designed for heavy-duty industrial applications, combining pneumatic, hydraulic, and electrical power transmission in a single robust unit.
Product Overview

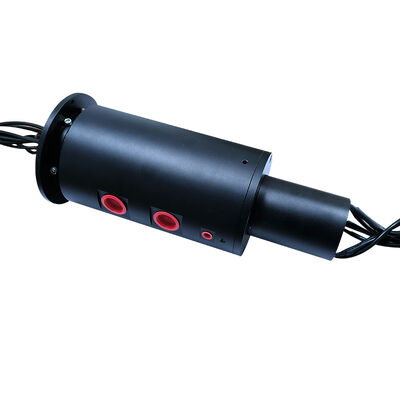

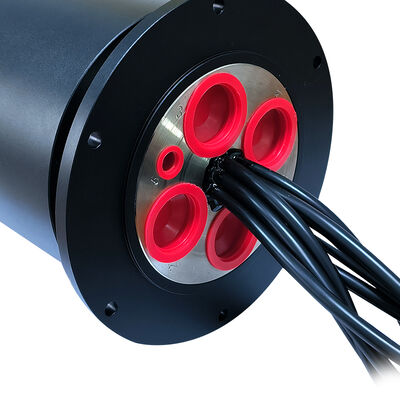

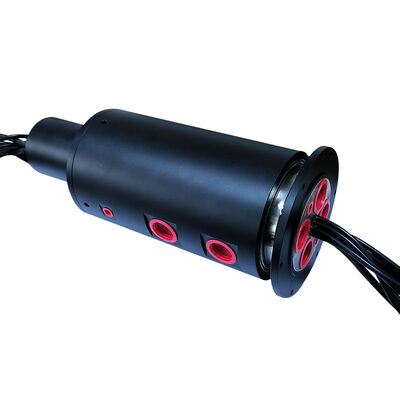

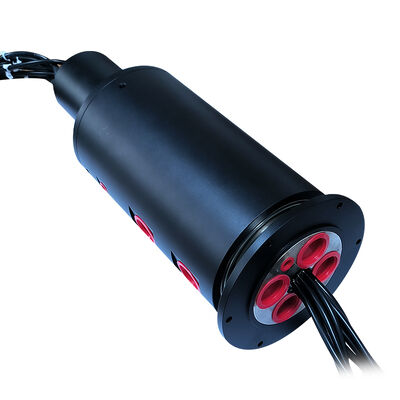

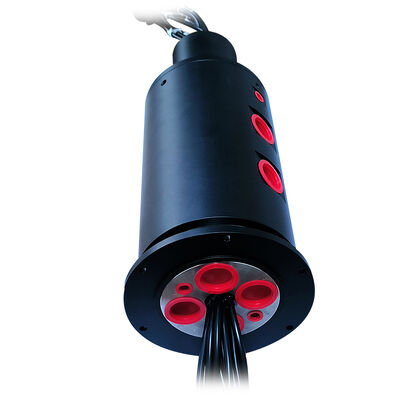

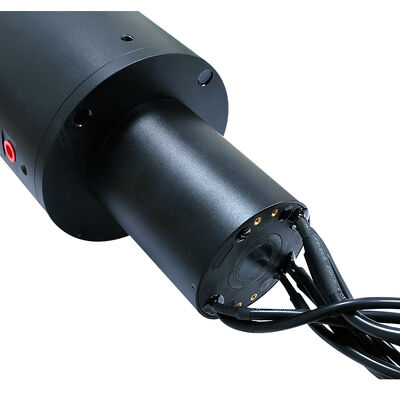

This integrated pneumatic, hydraulic, and electrical slip ring features two G1/4" pneumatic lines, four G1" high-pressure hydraulic lines, and sixteen 10A power/signal channels. Built with a robust black aluminum alloy housing, it withstands hydraulic system pressures up to 14 MPa, supports 380V industrial voltage, operates at 100 RPM, and features an IP51 protection rating.
Key Features
  • Integrated Multi-Medium Transmission: Combines pneumatic, hydraulic, and electrical power in one rotating unit, simplifying complex system architectures
  • 14MPa Ultra-High Pressure Oil Circuit: Heavy-duty design for stable operation under extreme working pressures
  • 16-Channel High-Current Power Matrix: Provides abundant and flexible energy distribution for multi-actuator systems
  • Industrial-Grade Environmental Adaptability: 380V industrial power compatibility, 100 RPM operation, and IP51 protection for demanding environments
Technical Parameters
Electrical Parameters Gas Parameters
Dielectric strength: 500VCA@50Hz,60s Number of trachea: 6 in 6 out
Insulation resistance: ≥1000MΩ/500VDC Pressure: -99KPa-14MPa or vacuum
Dynamic resistance change value: ＜10mΩ Rotational torque: <0.3N.m
Rated voltage: 0～380VDC/VAC Rotation speed: 100rpm
Wire Specifications: Teflon wire (current-dependent) Shell material: Aluminum Alloy
Wire length: Default 300mm (Customizable) Temperature: -30℃～+80℃
Contact material: Precious metal contacts Operating humidity: 0～85%RH
Protection level: IP51
Technical Drawings
Integrated Slip Ring with 14MPa Ultra-High Pressure Oil Circuit, 16-Channel High-Current Power Matrix, and IP51 Protection for Heavy-Duty Applications 0
Application Scenarios
  • Large-scale construction machinery: Tunnel boring machine cutter heads, mining excavator slewing platforms, port crane booms
  • Heavy metallurgical and casting equipment: Continuous casting machines, rolling mills, and large rotating components
  • Ships and offshore equipment: Marine cranes, steering gears, propeller rotating connections
  • Specialized automated production lines: Large rotating machining centers and heavy material handling systems
Frequently Asked Questions
Will the gas, oil, and electrical circuits interfere with each other or leak internally?
No. The product features completely independent modular cavity design and sealed isolation technology, ensuring complete physical and functional isolation between gas, oil, and electrical circuits, eliminating cross-contamination and electrical interference risks.
Can the 14MPa oil circuit be used for other non-hydraulic oil media?
The standard model is optimized for mineral-based hydraulic oil. For water-glycol, emulsions, or other special media, seal compatibility must be evaluated based on corrosive and lubricating properties. Customized sealing solutions are available.
Does the product support higher protection ratings (such as IP65) for harsher environments?
The standard model provides IP51 protection. For applications requiring higher protection against water spray and dust (IP65/IP67), we offer customized versions with enhanced sealing design and interface protection.
