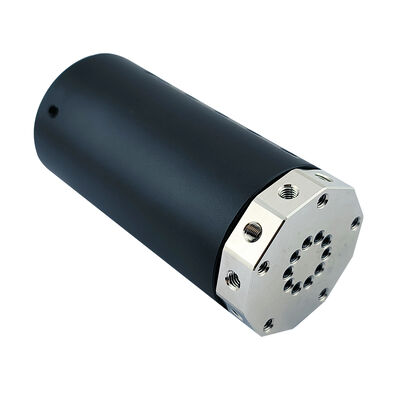

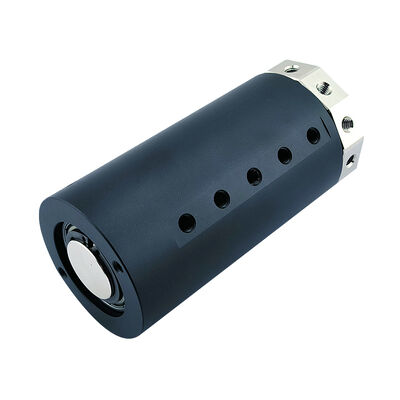

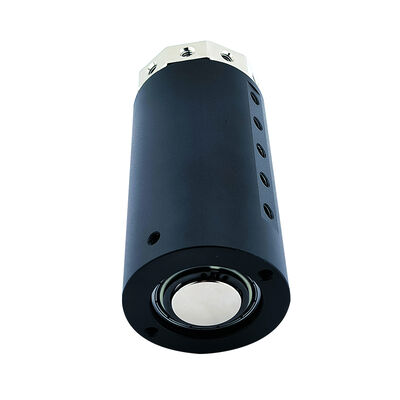

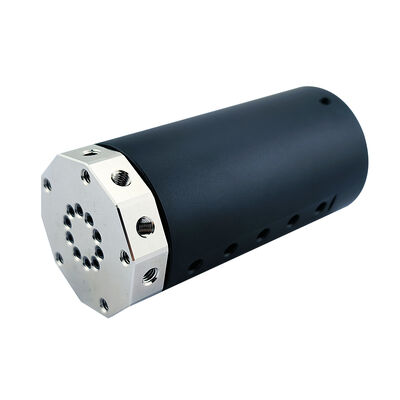

10-channel Pneumatic Slip Ring with M5 port size and vacuum optimized for reliable multi-channel rotary sealing

10-channel Pneumatic Slip Ring with M5 port size and vacuum optimized for reliable multi-channel rotary sealing
10-channel Pneumatic Slip Ring with M5 port size and vacuum optimized for reliable multi-channel rotary sealing
10-channel Pneumatic Slip Ring with M5 port size and vacuum optimized for reliable multi-channel rotary sealing 10-channel Pneumatic Slip Ring with M5 port size and vacuum optimized for reliable multi-channel rotary sealing 10-channel Pneumatic Slip Ring with M5 port size and vacuum optimized for reliable multi-channel rotary sealing 10-channel Pneumatic Slip Ring with M5 port size and vacuum optimized for reliable multi-channel rotary sealing 10-channel Pneumatic Slip Ring with M5 port size and vacuum optimized for reliable multi-channel rotary sealing 10-channel Pneumatic Slip Ring with M5 port size and vacuum optimized for reliable multi-channel rotary sealing 10-channel Pneumatic Slip Ring with M5 port size and vacuum optimized for reliable multi-channel rotary sealing

Large Image :  10-channel Pneumatic Slip Ring with M5 port size and vacuum optimized for reliable multi-channel rotary sealing

Product Details:
Place of Origin: china
Brand Name: GuRen
Certification: ISO9001.CE.RoHS
Model Number: Q10PM5-GRA0705
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: ＄19-199
Packaging Details: Standard/On Request
Delivery Time: 3 weeks ARO
Payment Terms: L/C,D/P,T/T
Supply Ability: 1K units/week
Contact Now Chat Now

10-channel Pneumatic Slip Ring with M5 port size and vacuum optimized for reliable multi-channel rotary sealing

Description
Circuit Number: 10-in, 10-out Outer Diameter: 48mm
High: 100mm Sealing Type: O-Ring
Service Life: 20 Million Rotations Tracheal Size: M5
Highlight:

10-channel Pneumatic Slip Ring

,

M5 port size Gas Rotary Union

,

Vacuum optimized Pneumatic Rotary Joint

10-Channel Pneumatic Slip Ring
This 10-channel pneumatic rotary joint features M5 port size compatibility with 4-6mm air tubing, designed specifically for multi-channel vacuum applications requiring high-precision rotary connections.
Product Overview
Engineered with an aluminum alloy housing, this pneumatic slip ring integrates 10 independent M5 interface pneumatic channels. Optimized for negative pressure conditions, it reliably maintains vacuum levels up to -90KPa while ensuring leak-free operation at rotational speeds of 200 RPM. With an IP51 protection rating, it provides dependable multi-channel rotary sealing for automation applications including vacuum adsorption, gripping, fixing, and testing.
Key Features
  • Vacuum-Optimized Design: Specialized sealing structure and materials for negative pressure systems, maintaining stable vacuum levels up to -90KPa
  • 10 Independent Channels: Complete channel isolation enables individual on/off and pressure control for multiple suction cups or vacuum stations
  • Reliable Dynamic Sealing: Low-friction, high-sealing components ensure stable vacuum performance at 200 RPM rotation
  • Standard Interface Compatibility: M5 ports compatible with 4-6mm vacuum tubing for easy integration
  • Basic Environmental Protection: IP51 rating protects against dust ingress and vertical water dripping
Technical Specifications
Transmission Medium Vacuum
Working Life 20 million revolutions (reference value)
Maximum Speed 200 RPM
Pressure Range -90KPa
Operating Temperature -30℃ to +80℃
Operating Humidity 0-85% RH
Protection Level IP51
Shell Material Aluminum Alloy
Rotational Torque 0.5N.m (reference value, torque increases with channel count)
Product Dimensions
10-channel Pneumatic Slip Ring with M5 port size and vacuum optimized for reliable multi-channel rotary sealing 0
Application Scenarios
  • Vacuum Handling Systems: Multi-suction cup tools for robotic end effectors handling glass, plates, and boxes
  • Electronics Assembly: Rotating worktables for precise positioning of circuit boards, chips, and components
  • Packaging Machinery: Rotary vacuum conveying, positioning, and stacking equipment
  • Automated Inspection: Vacuum fixtures on rotating inspection tables for workpiece testing
Frequently Asked Questions
Does the -90KPa specification refer to absolute pressure or relative pressure (gauge pressure)?
Typically, this parameter refers to relative pressure (gauge pressure), meaning 90KPa below standard atmospheric pressure (approximately 101KPa), corresponding to an absolute pressure of approximately 11KPa. Please specify your measurement requirements during product selection.
Can all 10 channels simultaneously achieve a vacuum of -90KPa?
Yes. Each channel is designed to support this vacuum level. Actual performance depends on your vacuum generation device's pumping speed, pipeline impedance, and total system leakage rate.
Can this product be used for positive pressure (blowing) applications?
While optimized for vacuum, it can typically handle low positive pressure blowing (0.3-0.5MPa). For primary positive pressure applications, we recommend our standard positive pressure rotary joint for better cost-effectiveness and sealing performance.
