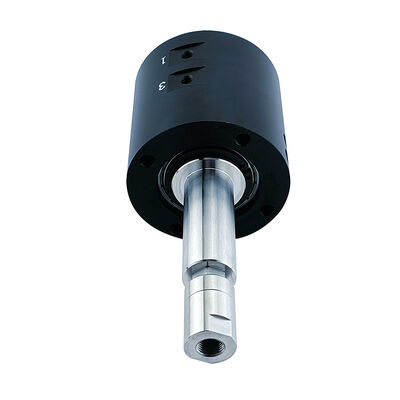

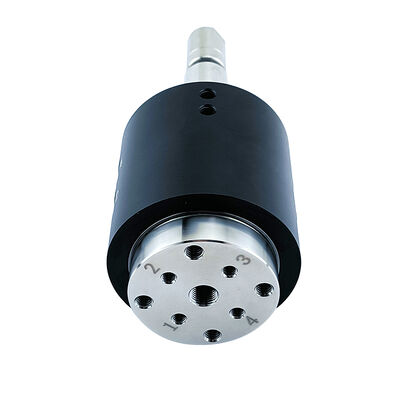

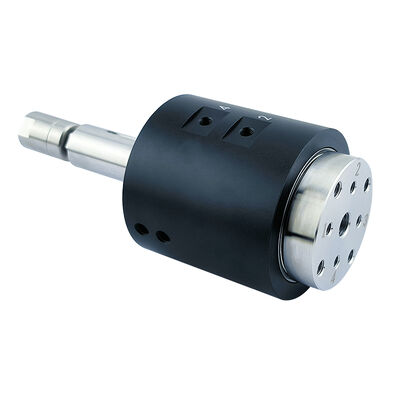

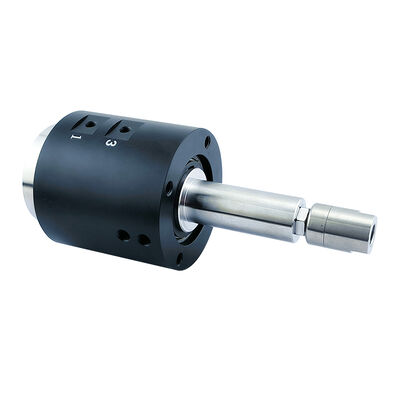

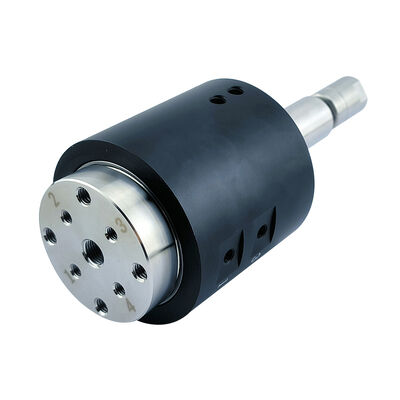

5-in-5-out Multi-Media Rotary Slip Ring with Stainless Steel Extended Central Shaft for 1MPa Pressure Fluid Transfer

5-in-5-out Multi-Media Rotary Slip Ring with Stainless Steel Extended Central Shaft for 1MPa Pressure Fluid Transfer
5-in-5-out Multi-Media Rotary Slip Ring with Stainless Steel Extended Central Shaft for 1MPa Pressure Fluid Transfer
5-in-5-out Multi-Media Rotary Slip Ring with Stainless Steel Extended Central Shaft for 1MPa Pressure Fluid Transfer 5-in-5-out Multi-Media Rotary Slip Ring with Stainless Steel Extended Central Shaft for 1MPa Pressure Fluid Transfer 5-in-5-out Multi-Media Rotary Slip Ring with Stainless Steel Extended Central Shaft for 1MPa Pressure Fluid Transfer 5-in-5-out Multi-Media Rotary Slip Ring with Stainless Steel Extended Central Shaft for 1MPa Pressure Fluid Transfer 5-in-5-out Multi-Media Rotary Slip Ring with Stainless Steel Extended Central Shaft for 1MPa Pressure Fluid Transfer 5-in-5-out Multi-Media Rotary Slip Ring with Stainless Steel Extended Central Shaft for 1MPa Pressure Fluid Transfer 5-in-5-out Multi-Media Rotary Slip Ring with Stainless Steel Extended Central Shaft for 1MPa Pressure Fluid Transfer 5-in-5-out Multi-Media Rotary Slip Ring with Stainless Steel Extended Central Shaft for 1MPa Pressure Fluid Transfer

Large Image :  5-in-5-out Multi-Media Rotary Slip Ring with Stainless Steel Extended Central Shaft for 1MPa Pressure Fluid Transfer

Product Details:
Place of Origin: china
Brand Name: GuRen
Certification: ISO9001.CE.RoHS
Model Number: Q5PM5-C0323
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: ＄19-199
Packaging Details: Standard/On Request
Delivery Time: 3 weeks ARO
Payment Terms: L/C,D/P,T/T
Supply Ability: 1K units/week
Contact Now Chat Now

5-in-5-out Multi-Media Rotary Slip Ring with Stainless Steel Extended Central Shaft for 1MPa Pressure Fluid Transfer

Description
Circuit Number: 5 In 5 Out Inner Diameter: Solid
Outer Diameter: 66mm High: 158mm
Pore ​​size: M5，G1/8" Air Pressure: 1MPa
Highlight:

5-in-5-out Rotary Slip Ring

,

Stainless Steel Extended Central Shaft Rotary Union

,

1MPa Pressure Gas Rotary Union

5-in-5-out Multi-Media Rotary Slip Ring
Stainless steel extended central shaft design for precision fluid transfer applications
Product Overview
This 5-in-5-out multi-media rotary slip ring is engineered for precision fluid transfer applications. Featuring a composite structure with aluminum alloy housing and stainless steel extended central shaft, it combines lightweight design with exceptional strength. The system integrates four M5 air channels and one G1/8" adhesive channel, supporting maximum working pressure of 1MPa and rotation speeds up to 250rpm. Ideal for automated dispensing, coating, and encapsulation equipment requiring simultaneous transfer of pneumatic power and adhesives/coatings.
Key Features
  • Independent Air-Glue Dual-Media Transfer: Four pneumatic channels and one dedicated glue channel for simultaneous pneumatic control and fluid coating in automated processes
  • Stainless Steel Extended Central Shaft: High rigidity and wear resistance ensures rotational accuracy and long service life, with direct connection capability to equipment main shaft
  • 5 Inlet/5 Outlet Independent Channels: Complete channel independence enables multi-point pneumatic actuation and flexible glue circulation control
  • High-Speed, High-Pressure Performance: Media-resistant seals maintain leak-free operation at 250 rpm and 1 MPa pressure for precision coating applications
Technical Parameters
Parameter Value
Transmission medium Air, glue
Working life 20 million revolutions (reference value)
Maximum speed 250 RPM
Pressure range 1MPa
Operating temperature -30℃ to +80℃
Operating humidity 0-85% RH
Protection level IP51
Shell material Aluminum Alloy
Rotational torque 0.5N.m (reference value, torque increases with channel count)
Product Dimensions
5-in-5-out Multi-Media Rotary Slip Ring with Stainless Steel Extended Central Shaft for 1MPa Pressure Fluid Transfer 0
Application Scenarios
  • Automated dispensing and potting equipment: Synchronous control of adhesive delivery and pneumatic grippers/positioning cylinders in rotary multi-axis dispensing machines
  • Precision coating and spraying systems: Paint supply and pneumatic nozzle switching in rotary coating equipment for optical films, PCB solder resist films, etc.
  • Electronic packaging and assembly: Integration of adhesive dispensing and adsorption/fixation pneumatic circuits in chip underfilling and FPC reinforcement processes
  • Medical consumables manufacturing: Medical adhesive delivery and pneumatic tension control in rotary catheter coating equipment
Frequently Asked Questions
Q1: Are glue channels suitable for high-viscosity media (such as epoxy resin, silicone)?
Yes. The G1/8" interface flow channel features a thickened and low-resistance design, suitable for fluids with viscosities up to several thousand cps. For higher viscosity or filler-containing adhesives, we offer heated or large-diameter custom designs to ensure smooth delivery.
Q2: How do I clean the adhesive channels? Is it necessary to disassemble the slip ring?
The product supports online cleaning. You can clean the internal flow channels by injecting a cleaning solvent (such as alcohol) and rotating the slip ring. Cleaning is recommended before the adhesive cures. For deep cleaning, the connectors at both ends can be disassembled for purging.
Q3: How is the stainless steel central shaft installed?
The extended stainless steel shaft is typically designed with keyways, threads, or clamping surfaces for direct rigid connection to couplings, timing pulleys, or the main shaft of the equipment. Specific dimensions can be customized according to your installation interface for a "plug-and-play" experience.
Q4: Can the 4-channel air supply be used simultaneously for vacuum?
Yes. The air supply sealing design is compatible with both positive and negative pressure (vacuum). You can use some channels for positive pressure drive and others for vacuum adsorption as needed, offering high flexibility.
