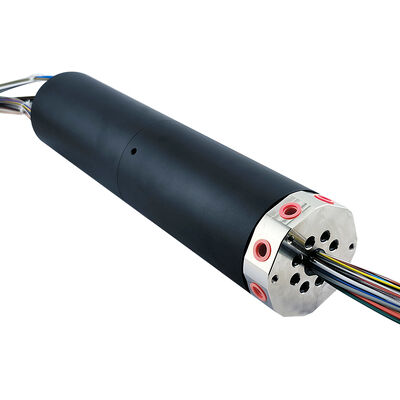

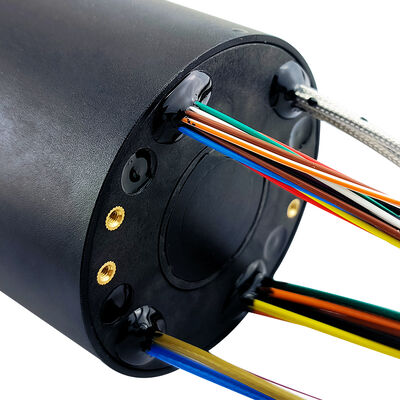

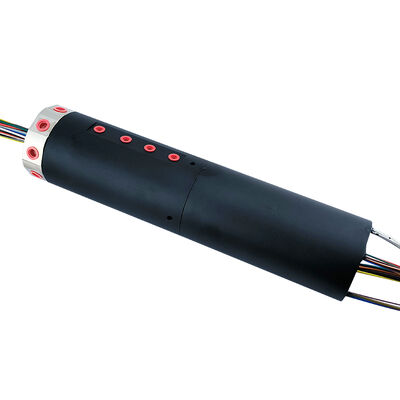

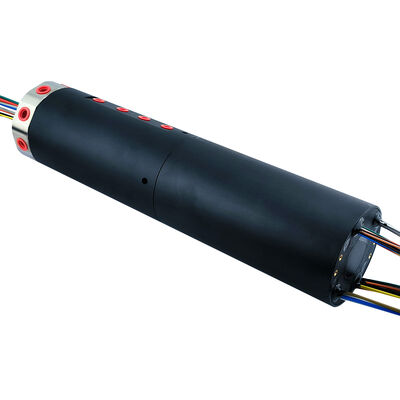

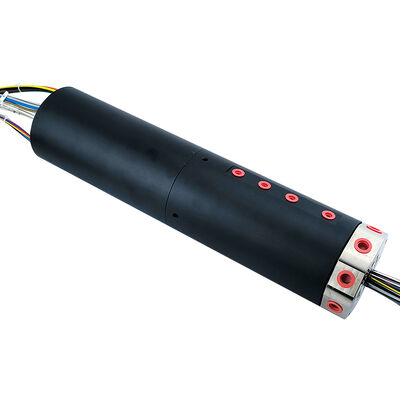

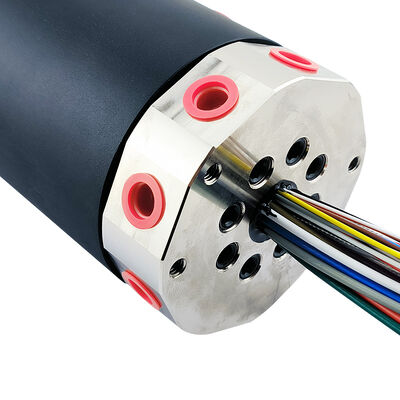

Gas-Water-Electricity Combined Slip Ring with 2-Channel Water, 6-Channel Gas, and 40-Channel Electricity for Industrial Applications

Gas-Water-Electricity Combined Slip Ring with 2-Channel Water, 6-Channel Gas, and 40-Channel Electricity for Industrial Applications
Gas-Water-Electricity Combined Slip Ring with 2-Channel Water, 6-Channel Gas, and 40-Channel Electricity for Industrial Applications
Gas-Water-Electricity Combined Slip Ring with 2-Channel Water, 6-Channel Gas, and 40-Channel Electricity for Industrial Applications Gas-Water-Electricity Combined Slip Ring with 2-Channel Water, 6-Channel Gas, and 40-Channel Electricity for Industrial Applications Gas-Water-Electricity Combined Slip Ring with 2-Channel Water, 6-Channel Gas, and 40-Channel Electricity for Industrial Applications Gas-Water-Electricity Combined Slip Ring with 2-Channel Water, 6-Channel Gas, and 40-Channel Electricity for Industrial Applications Gas-Water-Electricity Combined Slip Ring with 2-Channel Water, 6-Channel Gas, and 40-Channel Electricity for Industrial Applications Gas-Water-Electricity Combined Slip Ring with 2-Channel Water, 6-Channel Gas, and 40-Channel Electricity for Industrial Applications Gas-Water-Electricity Combined Slip Ring with 2-Channel Water, 6-Channel Gas, and 40-Channel Electricity for Industrial Applications

Large Image :  Gas-Water-Electricity Combined Slip Ring with 2-Channel Water, 6-Channel Gas, and 40-Channel Electricity for Industrial Applications

Product Details:
Place of Origin: china
Brand Name: GuRen
Certification: ISO9001.CE.RoHS
Model Number: Q8P02-40P-GRC0049
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: ＄19-199
Packaging Details: Standard/On Request
Delivery Time: 3 weeks ARO
Payment Terms: L/C,D/P,T/T
Supply Ability: 1K units/week
Contact Now Chat Now

Gas-Water-Electricity Combined Slip Ring with 2-Channel Water, 6-Channel Gas, and 40-Channel Electricity for Industrial Applications

Description
Air Channel: 8 Channel Applicable Trachea: 8-10mm
Protection Level: IP51 Number Of Circuits: 40-way
Outer Diameter: 86mm Transmissible Medium: Air, Water
Highlight:

2-channel water Combined Slip Ring

,

6-channel gas Pneumatic Slip Ring

,

40-channel electricity Gas-Water-Electricity Slip Ring

Gas-Water-Electricity Combined Slip Ring
2-channel water, 6-channel gas, 40-channel electricity
Product Overview
This air-water-electricity combined slip ring is a high-end integrated solution that combines air, water, electricity, and signal transmission capabilities. Featuring a robust aluminum alloy housing, it efficiently integrates 2 water channels, 6 air channels, and 40 electrical and signal channels within a compact 86mm outer diameter and 364mm total length. The product supports stable operation at maximum air pressure of 1MPa, 220V operating voltage, and 200rpm, with dedicated temperature sensing signal transmission capability.
Key Features
  • Three-medium, four-function integration: Simultaneously handles water circulation, pneumatic control, power supply, and temperature signal transmission
  • High-density 48-channel design: Integrates 2 water, 6 pneumatic, and 40 electrical channels within 86mm outer diameter
  • Dedicated temperature signal transmission: Allocated channel for accurate temperature sensor signal transmission
  • Industrial-grade performance: Withstands 200rpm rotational speed and 1MPa air pressure with excellent heat dissipation
Technical Specifications
Electrical Parameters Gas Parameters
Dielectric strength: 500VCA@50Hz,60s Number of trachea: 8 in 8 out
Insulation resistance: ≥1000MΩ/500VDC Pressure: 1MPa
Dynamic resistance change value: ＜10mΩ Rotational torque: <0.3N.m
Rated voltage: 0～220VDC/VAC Rotation speed: 200rpm
Wire Specifications: Teflon wire (current-dependent) Shell material: Aluminum Alloy
Wire length: Default 250mm (Customizable) Temperature: -30℃～+80℃
Contact material: Precious metal contacts Operating humidity: 0～85%RH
Protection level: IP51
Technical Drawings
Gas-Water-Electricity Combined Slip Ring with 2-Channel Water, 6-Channel Gas, and 40-Channel Electricity for Industrial Applications 0
Application Scenarios
  • Plastics and Rubber Machinery: Temperature control of rotary injection molding dies, pneumatic ejector pins, and sensor signal transmission
  • Food and Beverage Filling Equipment: Integrated connection of cleaning water circuits, pneumatic valves, and level sensors in rotary filling machines
  • Industrial Cleaning and Surface Treatment: Water and air supply with electrical signal transmission for rotary spray arms
  • Testing and Experimentation Platforms: Media circulation and multi-channel temperature and pressure signal acquisition in rotating environmental chambers
Frequently Asked Questions
Q: What is the rated current of the 40 electrical and signal channels? Can it be customized?
A: In the standard configuration, each channel can carry 2A-5A current, depending on wiring specifications and design. We can customize different current ratings according to your needs to meet mixed load requirements.
Q: Can the water channel and the air pressure channel work simultaneously? Will they interfere with each other?
A: They can work simultaneously. The product uses completely independent cavities and sealed structures to ensure that water, air, and electrical circuits are physically isolated, eliminating cross-contamination and electrical interference.
Q: Are there any requirements for the signal type for temperature sensing signal transmission?
A: This product supports transmission of various temperature sensor signals including thermocouples, platinum resistance thermometers, and thermistors. For weak signals, we can provide shielded wiring harnesses and optimized grounding designs to minimize interference and ensure measurement accuracy.
