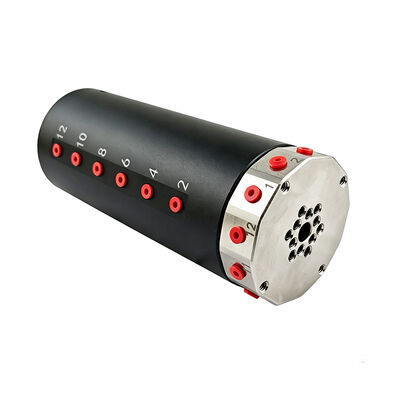

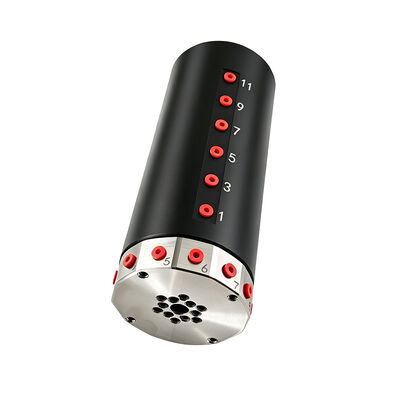

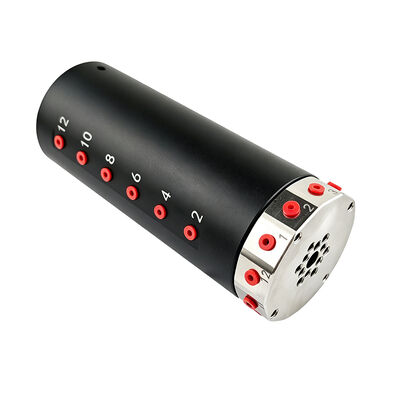

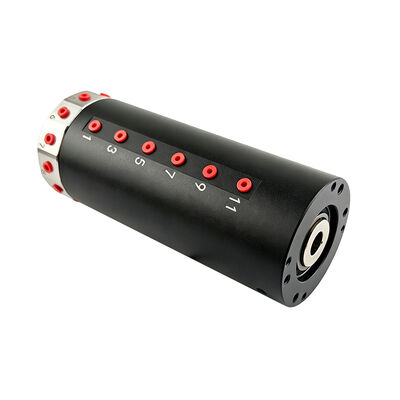

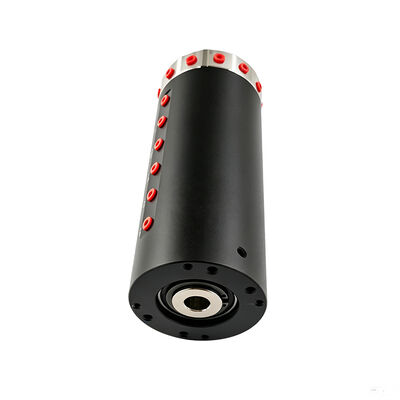

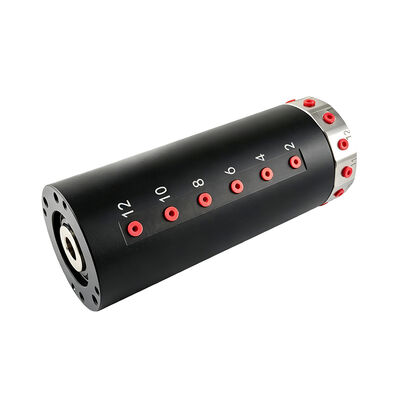

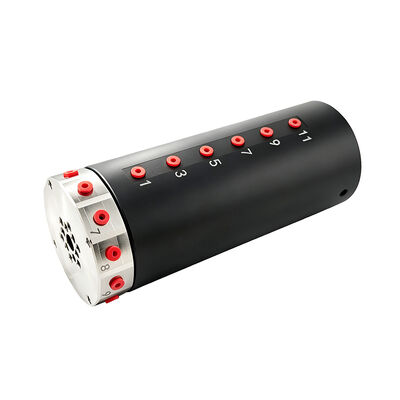

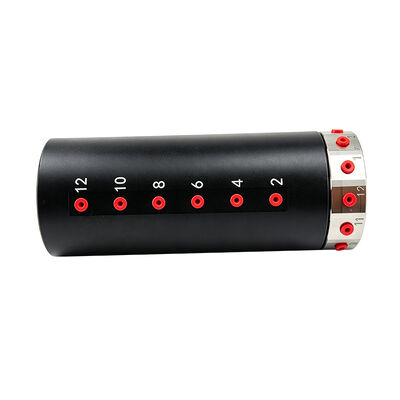

12-channel pneumatic slip ring with 6mm center bore and disc-style design for automated assembly and rotary fixture applications

The Q12PM5 is a 12-channel independent pneumatic slip ring designed specifically for the simultaneous supply of multiple air lines to automated rotary stations. It features a disc-style design with a 6mm center bore and a 48mm outer diameter; equipped with M5 ports for 4–6mm tubing, the air ports are arranged on the side. Supporting rotational speeds up to 200 RPM and an operating pressure range of 0–1.0 MPa, it enables the continuous and independent transmission of 12 compressed air lines during rotation. With a compact structure and a well-designed mounting hole layout, it serves as an ideal pneumatic rotary connection solution for applications such as automated assembly, rotary fixtures, and multi-station air supply.

• Integrated 12-Channel Independent Air Circuit: Features 12 independent air channels within a compact disc-shaped structure; each channel operates independently to support the simultaneous or sequential control of multiple actuators.
• 6mm Center Bore Design: A 6mm central through-hole accommodates small cables, sensor wires, or thin air tubes, optimizing internal routing and enabling integrated pneumatic-electrical connectivity.
• M5 Ports Compatible with 4–6mm Tubing: Uses standard M5 ports compatible with 4–6mm OD tubing, ensuring easy connection and broad versatility.
• Side-Mounted Air Ports: Air ports are centrally located on the side to facilitate tubing connection and maintenance while avoiding axial space consumption, making it ideal for compact installations.
• Stable 200 RPM Rotation: Supports rotational speeds up to 200 RPM while maintaining a reliable, leak-free seal for the air circuits during dynamic rotation.
• Wide Pressure Range (0–1.0 MPa): Supports an operating pressure range of 0–1.0 MPa, meeting the power requirements of standard pneumatic components such as cylinders, grippers, and vacuum generators.
• Compact Disc-Style Structure: Features an integrated disc design with a well-planned mounting hole layout; its compact size makes it suitable for space-constrained rotary workstations.

Multi-channel synchronous air supply simplifies rotary station design
Automated rotary stations often require simultaneous air supply to multiple cylinders, pneumatic grippers, or vacuum cups. The Q12PM5 replaces traditional stacked-fitting setups with 12 independent channels, significantly reducing the number of hoses and connection points, minimizing leakage risks, and enhancing system reliability.

Compact disc structure saves installation space
With a 48mm outer diameter and a disc-style design—complemented by well-positioned mounting holes—it integrates easily into rotary tables, indexing plates, or robot joints without consuming excessive axial or radial space.

Side-mounted ports facilitate routing and maintenance
Ports are located on the side, allowing air hoses to connect parallel to the equipment's side surface for neater routing. Maintenance is more efficient, as hoses can be quickly connected or disconnected without dismantling axial components.

6mm center bore offers integration flexibility
A 6mm center through-hole accommodates sensor cables, power lines, or small-diameter air hoses, enabling combined pneumatic and electrical routing and opening up new possibilities for internal equipment integration.

200 RPM and 1.0 MPa ratings balance dynamic performance and power
Supporting speeds of 200 RPM and pressures of 1.0 MPa, it meets the cycle-time requirements of high-speed rotary stations while delivering ample power to pneumatic components, making it suitable for a wide range of applications.

• Automated rotary tables: Synchronized air supply for pneumatic clamps and locating pins on multi-station indexing tables.
• Rotary assembly equipment: Pneumatic control for multi-axis tightening, press-fitting, and dispensing stations.
• Robotic end-effectors: Multi-channel air supply for pneumatic grippers, suction cups, and pneumatic tools.
• Packaging and filling machinery: Pneumatic valve control for rotary filling heads and sealing machines.
• Inspection and testing equipment: Multi-channel pneumatic actuation and air purging for rotary test stands.
• Food and pharmaceutical equipment: Clean pneumatic control for rotary filling and sealing machines.
